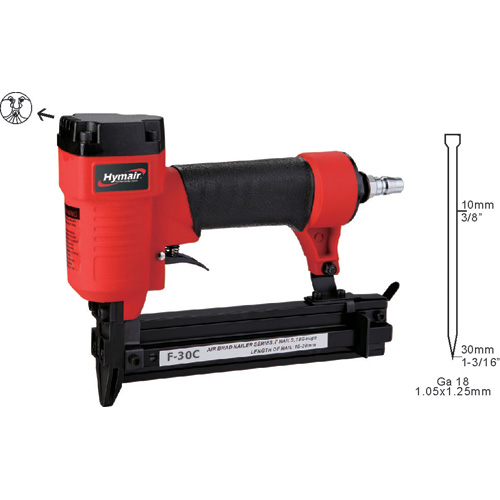

Brad Nailer (18 Gauge) (F-30C)
FEATURES & FUNCTIONS
1.Die casting aluminum housing for durability
2.Feature touch-strike safety system
3.One-piece hardened alloy steel driver for longer tool life
4.Easy open latch for more comfortable nails loading
5.Rubber grip reduces fatigue at operation
6.Excellent for molding, furniture making, and picture framing
1.Die casting aluminum housing for durability
2.Feature touch-strike safety system
3.One-piece hardened alloy steel driver for longer tool life
4.Easy open latch for more comfortable nails loading
5.Rubber grip reduces fatigue at operation
6.Excellent for molding, furniture making, and picture framing
| Quantity: | |
|---|---|
-
F-30C
-
Hymair
-
8467190000
Brad Nailer (18 Gauge) SPECIFICATIONS
Capacity......... 100 nails
Nail size.......18 gauge (1.25x1.25 mm)
Nail lengths.......3/8" to 1-3/16 " (10 to 30 mm)
Operating pressure....... 60-110 PSI (4-7.5 BAR)
Max. pressure.........120 PSI (8.3 BAR)
Air consumption...... 0.9 SCFM @ 90 PSI
Air inlet......... 1/4"NPT or BSP
Length......9.45"(240mm)
Height........7.28"(185 mm)
Width........2.16"(55 mm)
Weight.......2.42 lbs. (1.1 kgs)
Capacity......... 100 nails
Nail size.......18 gauge (1.25x1.25 mm)
Nail lengths.......3/8" to 1-3/16 " (10 to 30 mm)
Operating pressure....... 60-110 PSI (4-7.5 BAR)
Max. pressure.........120 PSI (8.3 BAR)
Air consumption...... 0.9 SCFM @ 90 PSI
Air inlet......... 1/4"NPT or BSP
Length......9.45"(240mm)
Height........7.28"(185 mm)
Width........2.16"(55 mm)
Weight.......2.42 lbs. (1.1 kgs)
Brad Nailer (18 Gauge) SPECIFICATIONS
Capacity......... 100 nails
Nail size.......18 gauge (1.25x1.25 mm)
Nail lengths.......3/8" to 1-3/16 " (10 to 30 mm)
Operating pressure....... 60-110 PSI (4-7.5 BAR)
Max. pressure.........120 PSI (8.3 BAR)
Air consumption...... 0.9 SCFM @ 90 PSI
Air inlet......... 1/4"NPT or BSP
Length......9.45"(240mm)
Height........7.28"(185 mm)
Width........2.16"(55 mm)
Weight.......2.42 lbs. (1.1 kgs)
Capacity......... 100 nails
Nail size.......18 gauge (1.25x1.25 mm)
Nail lengths.......3/8" to 1-3/16 " (10 to 30 mm)
Operating pressure....... 60-110 PSI (4-7.5 BAR)
Max. pressure.........120 PSI (8.3 BAR)
Air consumption...... 0.9 SCFM @ 90 PSI
Air inlet......... 1/4"NPT or BSP
Length......9.45"(240mm)
Height........7.28"(185 mm)
Width........2.16"(55 mm)
Weight.......2.42 lbs. (1.1 kgs)
