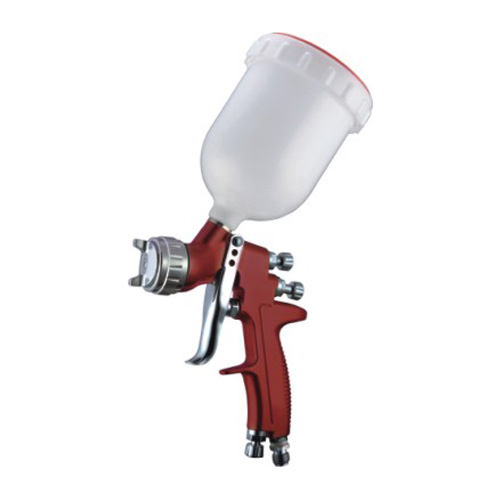

Hymair HVLP (High volume low pressure) Spray Gun (AS921)
Applications & Features:
1.High volume low pressure design in high transfer efficiency to save time and paint up to 25%, reducing overshot and spray time mist to protect enviroment.
2.Precise air cap set. Stainless steel nozzle and needle to allow use aqueous based paint.
3.Good application for spray painting of middle or high adhesive for surface finishing and middle coating
4.Color Available:chrome color,satin color,any anodized paint color.
1.High volume low pressure design in high transfer efficiency to save time and paint up to 25%, reducing overshot and spray time mist to protect enviroment.
2.Precise air cap set. Stainless steel nozzle and needle to allow use aqueous based paint.
3.Good application for spray painting of middle or high adhesive for surface finishing and middle coating
4.Color Available:chrome color,satin color,any anodized paint color.
| Quantity: | |
|---|---|
-
AS921
-
8424200000
Description:
Standard Nozzle: dia. 1.6 mm
Optional Nozzle : dia. 1.3, 1.6, 1.8, 2.0, 2.5 mm
Operating Pressure: 2.0 bar
Pattern Width: 180-230 mm
Air Consumption: 6.5 cfm
Cup Capacity: 600 ml
Standard Nozzle: dia. 1.6 mm
Optional Nozzle : dia. 1.3, 1.6, 1.8, 2.0, 2.5 mm
Operating Pressure: 2.0 bar
Pattern Width: 180-230 mm
Air Consumption: 6.5 cfm
Cup Capacity: 600 ml
Description:
Standard Nozzle: dia. 1.6 mm
Optional Nozzle : dia. 1.3, 1.6, 1.8, 2.0, 2.5 mm
Operating Pressure: 2.0 bar
Pattern Width: 180-230 mm
Air Consumption: 6.5 cfm
Cup Capacity: 600 ml
Standard Nozzle: dia. 1.6 mm
Optional Nozzle : dia. 1.3, 1.6, 1.8, 2.0, 2.5 mm
Operating Pressure: 2.0 bar
Pattern Width: 180-230 mm
Air Consumption: 6.5 cfm
Cup Capacity: 600 ml
